Diode Laser Stacks
>
500W 700W 808nm Laser Diode Bar Chip 5 7 Bar Diode Laser Stack for Diode Laser Hair Removal Handpiece Beauty Machine Components

500W 700W 808nm Laser Diode Bar Chip 5 7 Bar Diode Laser Stack for Diode Laser Hair Removal Handpiece Beauty Machine Components

Product Details:
Place of Origin: Shaanxi,China
Brand Name: Xinland
Model Number: MCC
Detail Information
Place of Origin:
Shaanxi,China
Brand Name:
Xinland
Model Number:
MCC
Output Wavelength:
808nm
Wavelength:
808 ±15nm
Working Current:
≤110 A
Working Voltage:
1.8/Bar V
Weight:
0.05kg
Trading Information
Minimum Order Quantity:
1pcs
Delivery Time:
30DAYS
Payment Terms:
T/T
Supply Ability:
10000PCS
Product Description

Specification

Output Wavelength:808 nm
Wavelength:±15 nm
Bar quantity :5~7 Pcs
Bar interval:1.8 mm
Single Bar Output power:100 W
Working current :≤110 A
Working voltage:1.8/Bar V
Threshold Current:≤25 A
Slope Efficiency per Bar:≥1.1 W/A
Power Conversion Efficiency:≥50 %
Water quality :Distilled or deionized water(Filtration system≤30um) /
Water temperature :18~32 ℃
Conductivity:≤5 us/cm
Average flow rate/Bar:0.2~0.4 L/Min



Product Description

1.Gold tin packaging.
2.High reliability and stability.
3.Standard industrial structure.
4.Wide range of customer application conditions.
5.Customized processing according to customer requirements.
6.The divergence angle of light is small.
7.Optical collimation spot can be customized.

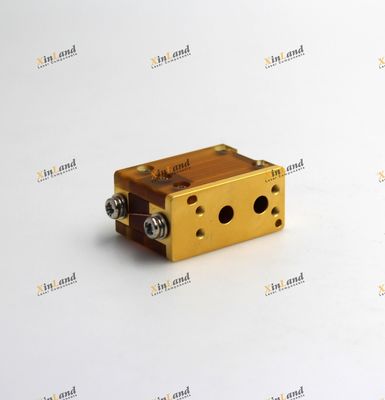

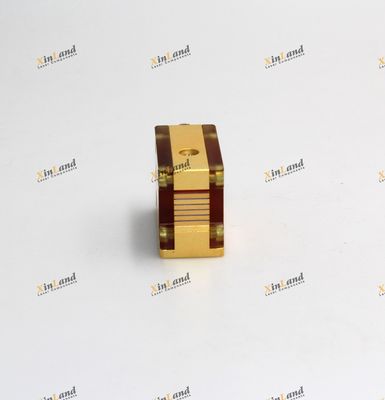

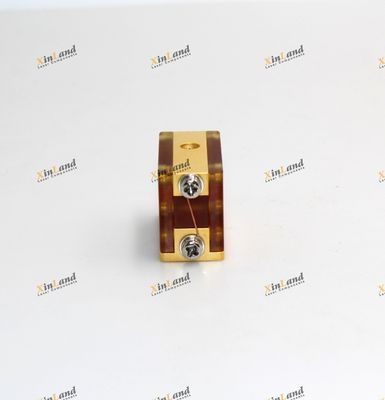

500W 700W 808nm Laser Diode Bar Chip 5 7 Bar Diode Laser Stack for Diode Laser Hair Removal Handpiece Beauty Machine Components 0500W 700W 808nm Laser Diode Bar Chip 5 7 Bar Diode Laser Stack for Diode Laser Hair Removal Handpiece Beauty Machine Components 1500W 700W 808nm Laser Diode Bar Chip 5 7 Bar Diode Laser Stack for Diode Laser Hair Removal Handpiece Beauty Machine Components 2

Vertical and Horizontal diode laser stacks and two-dimensional arrays, with power into the multi-kW range, for pumping, directed energy, hair removal, and materials processing.

Continuous Wave (CW) Stacks - microchannel cooling and uses it to enable optimum thermal management at high powers.
Pulsed Stacks - Covering QCW to long pulse conditions with conduction cooling and tap-water cooling options.
Broadest Wavelength Range - The range from 638 nm up to 2200 nm includes all major solid-state and fiber laser pump wavelengths as well as wavelengths used for defense, materials processing and medical aesthetics.

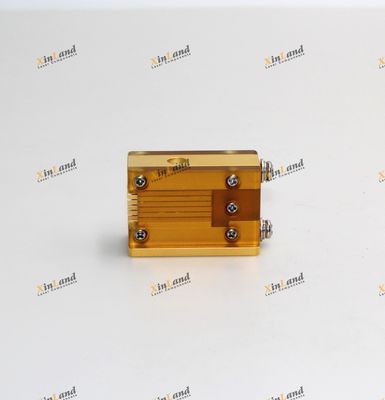

500W 700W 808nm Laser Diode Bar Chip 5 7 Bar Diode Laser Stack for Diode Laser Hair Removal Handpiece Beauty Machine Components 3
