| Place of Origin: | China |
| Brand Name: | Xinland |
| Model Number: | 500W |

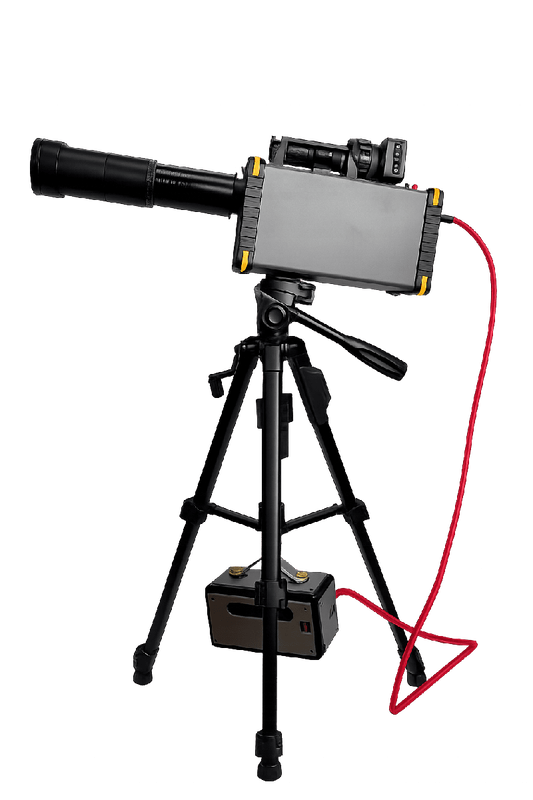

Designed for professional and industrial environments, this 500W 976nm infrared laser system combines high optical output, portable power and practical beam-positioning features in one integrated platform.
The system uses a BWT laser source with 500W optical output at 976nm and incorporates a switchable coaxial green alignment beam to provide a visible positioning reference for the invisible infrared output.
A removable high-discharge battery pack, manual focusing mechanism, wireless control and integrated thermal protection make the system suitable for professional users who require a flexible high-power infrared laser platform for controlled testing, research and equipment-integration projects.
The system delivers up to 500W optical output at 976nm, providing a concentrated infrared energy source for professional testing, thermal-response evaluation and specialized system integration.
Built around a BWT laser source, the unit is designed to provide dependable optical performance for professional applications where stable high-power laser output is required.
Because the 976nm working laser is invisible to the human eye, the system incorporates a switchable coaxial green alignment light to provide a convenient visual positioning reference during setup.
Manual focus adjustment allows users to configure the optical system according to different professional setups and working distances.
The detachable battery system enables portable operation without relying on a permanently connected external power supply, making the unit easier to deploy in laboratories, workshops and field-based professional environments.
An internal temperature protection system helps protect the laser system from excessive operating temperature by limiting or shutting down output when the preset protection threshold is reached.
The system integrates wireless remote operation together with a key-operated safety control, helping professional users manage access and operation within controlled working environments.
| Parameter | Specification |
|---|---|
| Laser Source | BWT |
| Optical Output Power | 500W |
| Wavelength | 976nm Infrared |
| Beam Output | Direct Infrared Output |
| Alignment Light | Switchable Coaxial Green Guide Beam |
| Focus Adjustment | Manual |
| Main Housing | Aluminum Alloy |
| Power Supply | Removable Rechargeable Battery |
| Battery Configuration | 18 × Samsung 40T Cells |
| Battery Output | 37.8V |
| Battery Protection | 40A Protection Board |
| Temperature Protection | Approx. 45°C |
| Remote Control | Included |
| Safety Control | Key-Operated Lock |
| Mounting Interface | 55mm Three-Slot Rail |
| Main Unit Weight | Approx. 6.5kg Without Tripod |
The 500W 976nm infrared laser platform is intended for controlled professional environments such as:
For integration projects, system configuration and accessories can be discussed according to specific technical requirements.
Unlike conventional high-power systems that rely entirely on fixed external power supplies, this model incorporates a removable battery architecture.
The portable configuration can simplify deployment where mobility, flexible positioning or temporary installation is required.
An integrated battery display also provides convenient power-status monitoring during operation.
The infrared working beam operates at 976nm and is not visible to the human eye.
To assist system setup and positioning, a visible green alignment beam is integrated into the optical path. Manual focusing allows the optical configuration to be adjusted according to the installation and application requirements.
Actual optical performance may vary depending on working distance, surface characteristics, optical adjustment, equipment stability and environmental conditions.
The system combines several operational and safety-oriented features, including:
These features make the platform suitable for professional users who need a compact high-power infrared laser system with flexible installation options.
Looking for a laser system for equipment integration or a specialized project?
We support B2B customers including equipment manufacturers, engineering companies, distributors and research organizations.
Depending on project requirements, customization may include:
Contact our team with your required wavelength, optical power, application environment and integration requirements for further evaluation.
We work with international customers requiring laser components and integrated laser solutions for industrial, engineering and research applications.
Our team can support customers from initial product evaluation through configuration discussion and volume supply.
Whether you require a standard unit or a customized configuration, we can discuss the technical and commercial requirements of your project.
The system operates at 976nm, which is within the infrared spectrum and is invisible to the human eye.
The rated optical output power is 500W.
This configuration uses a BWT laser source.
Yes. A switchable coaxial green guide beam is incorporated to provide a visible positioning reference during system setup.
Yes. The system uses a removable rechargeable battery pack, allowing more flexible portable operation.
Yes. The system incorporates manual focus adjustment for different professional setups.
Yes. The system includes automatic thermal protection at approximately 45°C to help protect the equipment from excessive operating temperature.
Customization can be discussed for B2B and engineering projects. Available options may depend on order quantity, technical requirements and project feasibility.
Sample or evaluation-unit availability can be discussed with the sales team before a larger B2B order.
