Product Details:
|
| Product Type: | DOE Laser Module | Voltage: | DC 2.8-5.2V |
|---|---|---|---|
| Output Power: | 0.4-5mW | Electric Current: | <45mA |
| Wavelength: | 635nm | Size: | Φ22x110mm |
| High Light: | 635nm 5mW Red Line Laser Module,635nm 0.4mW Red Line Laser Module,Red Line 635nm 5mw laser module |
||

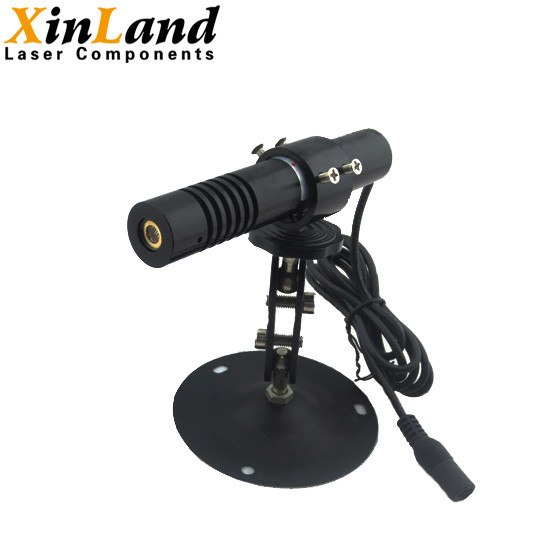

635nm 0.4-5mW Customizable Red Line Laser Module with Enhanced Point
Product Details:
Wavelength: 635nm
Output power: 0.4-5mW (can be adjusted according to customer requirements)
Working current: ≤45mA, the size is determined by different die and power
Supply voltage: DC2.8-5V (optional)
Dimensions: Φ22*110mm (shapes can be made upon request)
Working temperature: -10--+60℃
Storage temperature: -40--+80℃
| Electric Current | <45mA |
| Operating voltage | DC 2.8-5.2V |
| Dimension | Φ22x110mm |
| Operating Temperature | -10--+60℃ |
| Life time | >8000hours |
| Accessories | Mount and power Adaptor |
| Warranty: | 1 year |
Warranty:
we offer one year limited warranty for our products. Damage due to misuse, Ill treatment and unauthorized modifications will beyond our warranty.
Payment Method:
PayPal ( PayPal fee should be afforded at buyer's side), Bank Transfer, Western Union, and Money Gram.
Shipping Method:
DHL/FEDEX/UPS/EMS/TNT Express service; Post Service
