Product Details:
|
| Product Type: | DOE 14.26° Lens Laser Module | Voltage: | DC 2.8-5.2V |
|---|---|---|---|
| Electric Current: | ≤500mA | Wavelength: | 450nm/520nm/635nm |
| High Light: | 14.26° Laser Module 650nm 5v,Horizontal Laser Module 650nm 5v,Vertical Laser Module 650nm 5v |
||

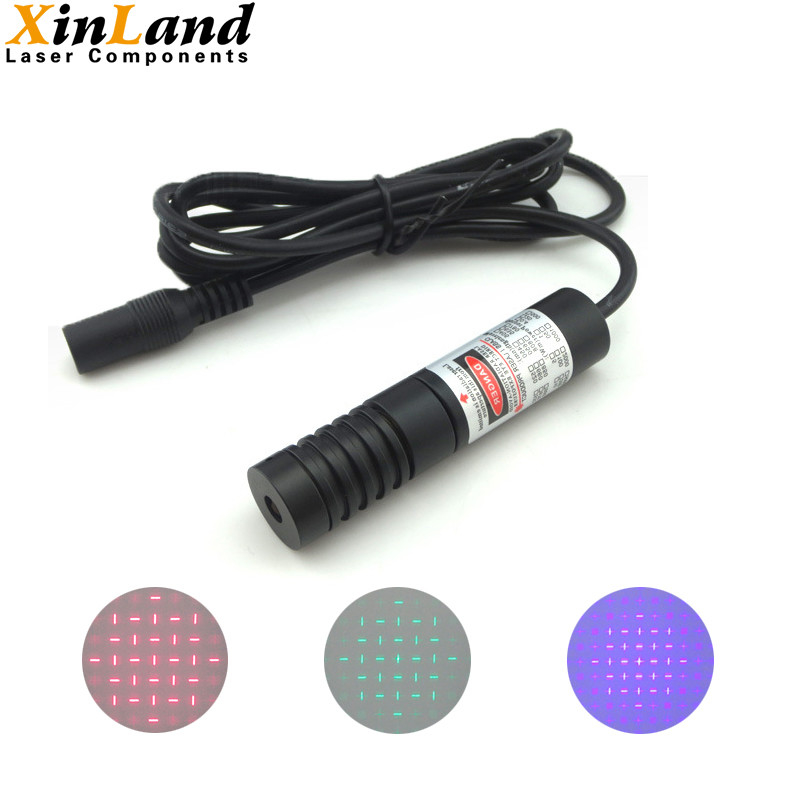

635nm 0.4-5mW Customizable Red Line Laser Module with Enhanced Point
Product Details:
Output wavelength: 450nm/520nm/635nm (customizable)
Die power: 50mW/100mW (optional)
Working voltage: DC 2.8V to 5.2V (customizable)
Working current: <500mA
Dimensions: 16*70mm (customizable)
Optical lens: grating sheet (imported from Germany)
Wavelength, Output Power, Voltage and Size Customizable
| Electric Current | <500mA |
| Operating voltage | DC 2.8-5.2V |
| Dimension | Φ16x70mm |
| Operating Temperature | -10--+60℃ |
| Life time | >8000hours |

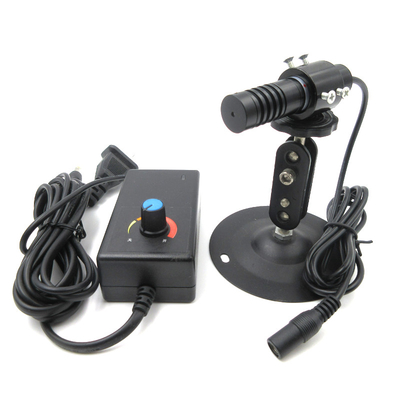

| Accessories | Mount and power Adaptor |
| Warranty: | 1 year |
Lens Degree:14.26°
X direction: 14.26°
At 0.5 meters, the length in the X direction is 125 mm
Y direction: 15.14°
At 0.5 meters, the length in the Y direction is 133 mm
lnstallation height 0 meters - 10 meters can be used
Warranty:
we offer one year limited warranty for our products. Damage due to misuse, Ill treatment and unauthorized modifications will beyond our warranty.
