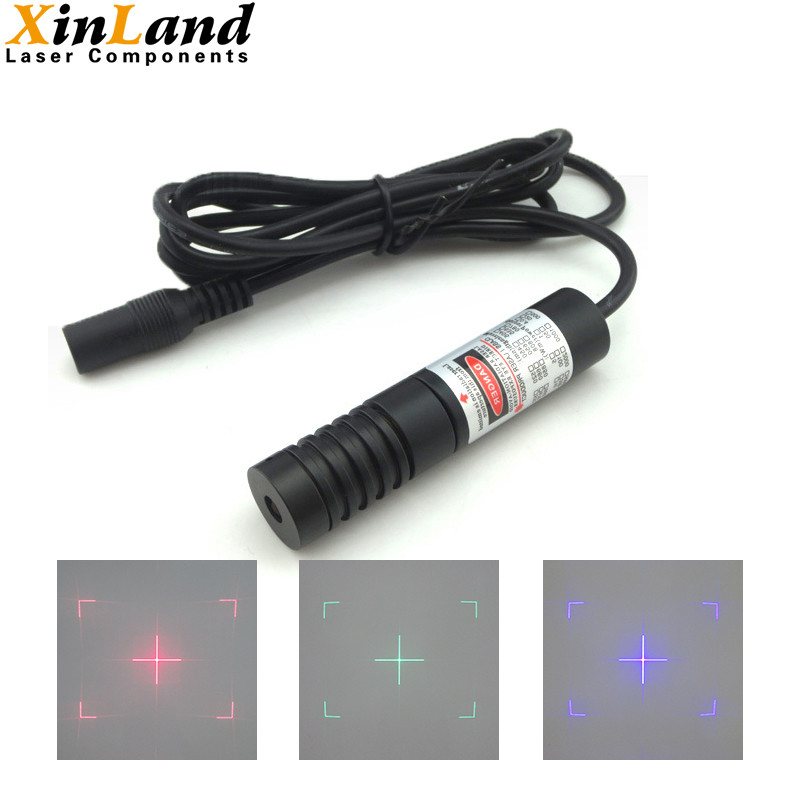

40.6° Cross Belt Frame DOE Laser Module Positioning Projection Light

40.6° Cross Belt Frame DOE Laser Module Positioning Projection Light

Product Details:
Place of Origin: China
Brand Name: xinland
Certification: CE
Model Number: DOE Laser Module
Detail Information
Place of Origin:
China
Brand Name:
xinland
Certification:
CE
Model Number:
DOE Laser Module
Product Type:
DOE Laser Module
Lens Angle:
40.6°
Light Source:
Red 100mW/Green 50mW/Blue 100mW
Wavelength:
650nm/520nm/450nm
Highlight:

High Light

Highlight:

40.6° DOE Laser Module

,

Cross Belt DOE Laser Module

,

40.6° dot laser module

Trading Information
Minimum Order Quantity:
10pcs
Price:
Negotiated
Packaging Details:
1pc carton
Delivery Time:
5-8 work days
Payment Terms:
T/T, L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:
50000pcs per months
Product Description

40.6° Cross Belt Frame Laser Module Positioning Projection Light with Imported from Germany Grating Sheet Laser Diode

Light Spot 0.5 meters Details:

Lens angle: 40.6°
0.5m: Length (40.6°): 370mm
0.5m: Width (31.5°): 281mm
At 0.5m: Cross length (13°): 115mm
Wavelength, Output Power, Voltage and Size Customizable
Installation height 0 meters - 5 meters can be used

The intelligent driver board with imported IC can supply power in a wide range of 2.8-5.2V (other voltages can be customized)

The whole set includes: Laser head + bracket + 2.8-5.2V adjustable power supply

40.6° Cross Belt Frame DOE Laser Module Positioning Projection Light 0

Name Wavelength Output Power Voltage(V) Electric Current Size Other Parameters
40.6° with Crossed Point Rectangle Red Laser 650nm 100mw DC 2.8-5.2V <500mA Φ16x70mm Lens angle: 40.6°
Wavelength, Output Power, Voltage and Size Customizable
Installation height 0 meters - 5 meters can be used
40.6° with Crossed Point Rectangle Green Laser 520nm 50mw DC 2.8-5.2V <500mA Φ16x70mm
40.6° with Crossed Point Rectangle Blue Laser 450nm 100mw DC 2.8-5.2V <500mA Φ16x70mm


40.6° Cross Belt Frame DOE Laser Module Positioning Projection Light 1

40.6° Cross Belt Frame DOE Laser Module Positioning Projection Light 2

40.6° Cross Belt Frame DOE Laser Module Positioning Projection Light 3
