Home > products >

Various Angles Optional DOE Laser Module With Center Dot Laser Module

Name: Various Angles Optional DOE Laser Module With Center Dot Laser Module
Brand: XINLAND LASER CO.,LTD
SKU: DOE Laser Module
Availability: InStock

Product Details:

Place of Origin:	China
Brand Name:	xinland
Certification:	CE
Model Number:	DOE Laser Module

Detail Information

Place of Origin:

China

Brand Name:

xinland

Certification:

Model Number:

DOE Laser Module

Product Type:

DOE Laser Module

Lens Angle:

Various Lens Angles Optional

Light Source:

Red 100mW/Green 50mW/Blue 100mW

Wavelength:

650nm/520nm/450nm

Band Range:

Visible Light

Output Form:

Power Type

Highlight:

High Light

Highlight:

Optional DOE Laser Module

Various Angles DOE Laser Module

450nm DOE Laser Module

Trading Information

Minimum Order Quantity:

10pcs

Price:

Negotiated

Packaging Details:

1pc carton

Delivery Time:

5-8 work days

Payment Terms:

T/T, L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability:

50000pcs per months

Product Description

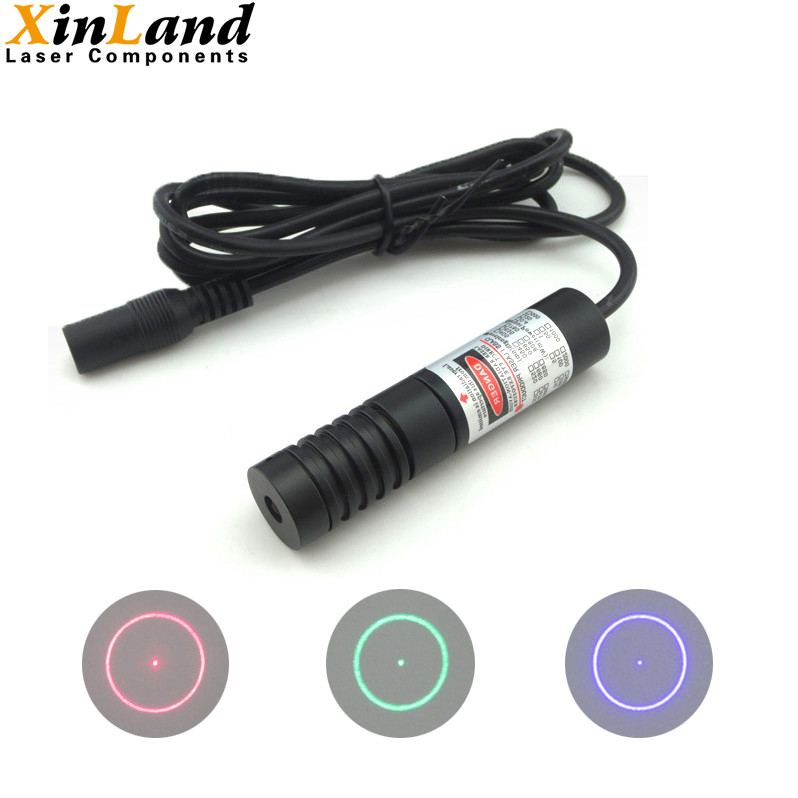

Various Lens Angles Optional Small Circle with Center Dot Laser Module

Product Details:

Wavelength	Output Power	Voltage(V)	Electric Current	Size
650nm	100mw	DC 2.8-5.2V	<500mA	Φ16x70mm
520nm	50mw	DC 2.8-5.2V	<500mA	Φ16x70mm
450nm	100mw	DC 2.8-5.2V	<500mA	Φ16x70mm

Light Spot Details:

Lens Degree 0.575°-5.1° Optional

0.575° The diameter of the circle at 1m is 10mm

1.7° The diameter of the circle at 1m is 30mm

1.83° The diameter of the circle at 1m is 32mm

2.06° The diameter of the circle at 1m is 36mm

2.3° The diameter of the circle at 1m is 40mm

2.48° The diameter of the circle at 1m is 43mm

2.56° The diameter of the circle at 1m is 45mm

2.7° The diameter of the circle at 1m is 47mm

3.5° The diameter of the circle at 0.5m is 31mm; the diameter of the circle at 1m is 62mm

4.3° The diameter of the circle at 1m is 75mm

4.52° The diameter of the circle at 1m is 79mm

5.1° The diameter of the circle at 1m is 89mm

Use adjustable power supply, can adjustable brightness.

When the brightness is reduced, there is less peripheral diffraction

Wavelength, Output Power, Voltage and Size Customizable

Various Angles Optional DOE Laser Module With Center Dot Laser Module 0

We offer professional service, the housing size, power, wavelength, drive circuit, divergence, beam shape, beam size and the wire length of the laser module can be customized!

Various Angles Optional DOE Laser Module With Center Dot Laser Module 1

Various Angles Optional DOE Laser Module With Center Dot Laser Module 3

Warranty:

we offer one year limited warranty for our products. Damage due to misuse, Ill treatment and unauthorized modifications will beyond our warranty.

Payment Method:

PayPal ( PayPal fee should be afforded at buyer's side), Bank Transfer, Western Union, and Money Gram.

Shipping Method:

DHL/FEDEX/UPS/EMS/TNT Express service; Post Service
