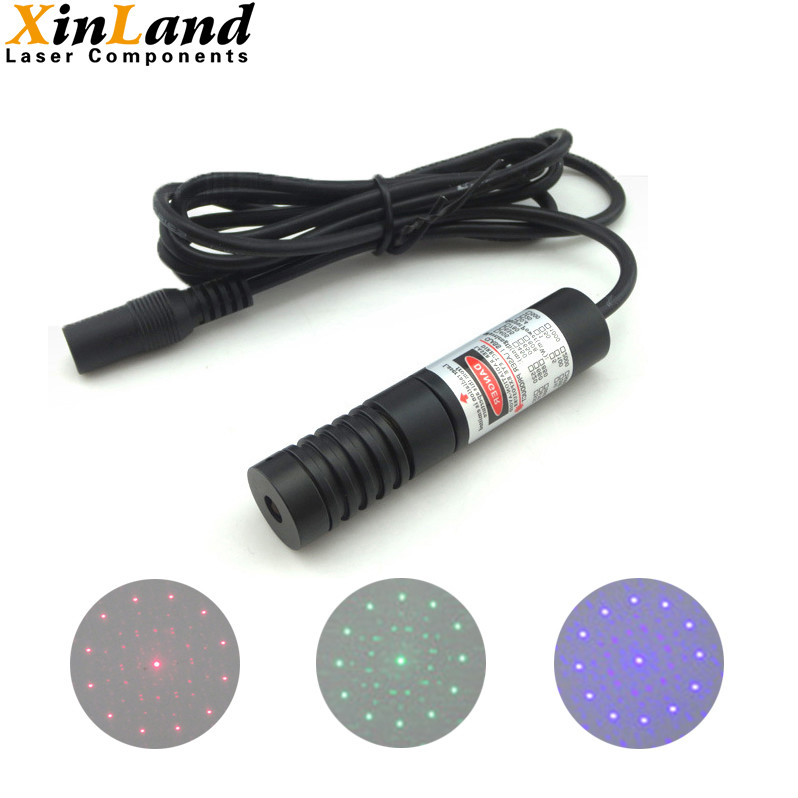

12 Points Circle Laser DOE Laser Module For Bullseye Positioning

Name: 12 Points Circle Laser DOE Laser Module For Bullseye Positioning
Brand: XINLAND LASER CO.,LTD
SKU: DOE Laser Module
Availability: InStock

Product Details:

Place of Origin:	China
Brand Name:	xinland
Certification:	CE
Model Number:	DOE Laser Module

Detail Information

Place of Origin:

China

Brand Name:

xinland

Certification:

Model Number:

DOE Laser Module

Product Type:

12 Points Circle With Center Point Laser

Lens Angle:

Tow Lens Angles Optional

Light Source:

Red 100mW/Green 50mW/Blue 100mW

Wavelength:

650nm/520nm/450nm

Aisle:

Single Channel

Working Voltage:

Voltage Can Be Customized

Highlight:

High Light

Highlight:

12 Points Circle DOE Laser Module

Bullseye Positioning DOE Laser Module

520nm DOE Laser Module

Trading Information

Minimum Order Quantity:

10pcs

Price:

Negotiated

Packaging Details:

1pc carton

Delivery Time:

5-8 work days

Payment Terms:

T/T, L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability:

50000pcs per months

Product Description

4.77° 9.95° 12 Points Circle Laser Dot Module with Center Point for Bullseye Positioning

Product Details:

Wavelength	Output Power	Voltage(V)	Electric Current	Size
650nm	100mw	DC 2.8-5.2V	<500mA	Φ16x70mm
520nm	50mw	DC 2.8-5.2V	<500mA	Φ16x70mm
450nm	100mw	DC 2.8-5.2V	<500mA	Φ16x70mm

Light Spot Details:

Lens angle: 4.77° / 9.95°

4.77° 3 meters, the diameter of the circle is 250 mm

9.95° 3 meters, the diameter of the circle is 522 mm

Installation height 0 meters - 5 meters can be used

The whole set includes: Laser head + bracket + 1-3V adjustable power supply

Other parameters:

Output wavelength: Customizable

Die power: 100mw (optional)

Working voltage: DC 2.8V to 5.2V (customizable)

Working current: <500mA

Dimensions: 16*70mm (customizable)

Optical lens: grating sheet

12 Points Circle Laser DOE Laser Module For Bullseye Positioning 0

12 Points Circle Laser DOE Laser Module For Bullseye Positioning 1

Warranty:

we offer one year limited warranty for our products. Damage due to misuse, Ill treatment and unauthorized modifications will beyond our warranty.

Payment Method:

PayPal ( PayPal fee should be afforded at buyer's side), Bank Transfer, Western Union, and Money Gram.

Shipping Method:

DHL/FEDEX/UPS/EMS/TNT Express service; Post Service
