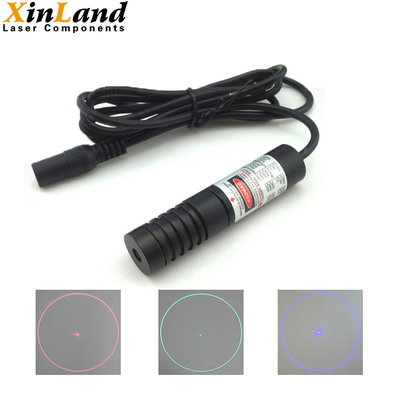

34° 56° Big Circle with Center Point Visible Light Laser Transmitter Module Positioning Light
Product Details:
| Wavelength |
Output Power |
Voltage(V) |
Electric Current |
Size |
| 650nm |
100mw |
DC 2.8-5.2V |
<500mA |
Φ16x70mm |
| 520nm |
50mw |
DC 2.8-5.2V |
<500mA |
Φ16x70mm |
| 450nm |
100mw |
DC 2.8-5.2V |
<500mA |
Φ16x70mm |
Light Spot Details:
Lens angle:34°
At 50 cm: Circle diameter: 31 cm
At 100 cm: circle diameter: 62 cm
At 150 cm: circle diameter: 93 cm
Lens angle:56°
At 50 cm: Circle diameter: 53 cm
At 100 cm: circle diameter: 106 cm
At 150 cm: circle diameter: 159 cm
Wavelength, Output Power, Voltage and Size Customizable

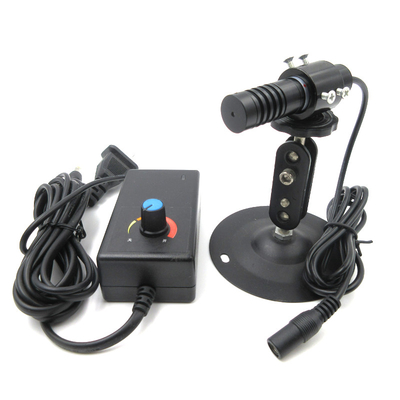

The whole set includes: Laser head + bracket + 1-3V adjustable power supply
Other parameters:
Output wavelength: Customizable
Die power: 100mw (optional)
Working voltage: DC 2.8V to 5.2V (customizable)
Working current: <500mA
Dimensions: 16*70mm (customizable)
Optical lens: grating sheet
The thickness of the light can be adjusted to meet your different requirements
The shell is made of aviation aluminum plated insulating paint, which can not only fully dissipate heat, but also resist shock, drop and static electricity.
High temperature resistant and corrosion resistant DC plug cord, suitable for all-weather use in all environments
