Crosshair Circle DOE Laser Module For Bullseye Positioning

Name: Crosshair Circle DOE Laser Module For Bullseye Positioning
Brand: XINLAND LASER CO.,LTD
SKU: DOE Laser Module
Availability: InStock

Product Details:

Place of Origin:	China
Brand Name:	xinland
Certification:	CE
Model Number:	DOE Laser Module

Detail Information

Place of Origin:

China

Brand Name:

xinland

Certification:

Model Number:

DOE Laser Module

Type:

Crosshair Ring (Bullseye) Laser

Lens Angle:

Various Lens Angles Optional

Light Source:

Red 100mW/Green 50mW/Blue 100mW

Wavelength:

650nm/520nm/450nm

Line Width:

Adjustable (mm)

Working Type:

Continuous Type

Highlight:

High Light

Highlight:

Crosshair Circle DOE Laser Module

Bullseye Positioning DOE Laser Module

650nm Continuous DOE Laser Module

Trading Information

Minimum Order Quantity:

10pcs

Price:

Negotiated

Packaging Details:

1pc carton

Delivery Time:

5-8 work days

Payment Terms:

T/T, L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability:

50000pcs per months

Product Description

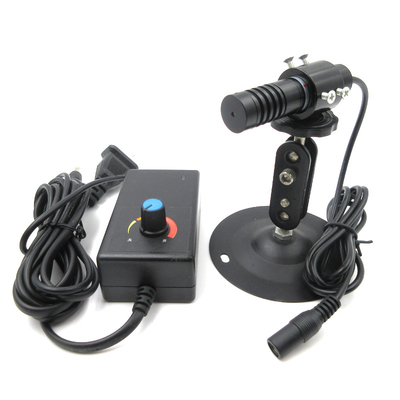

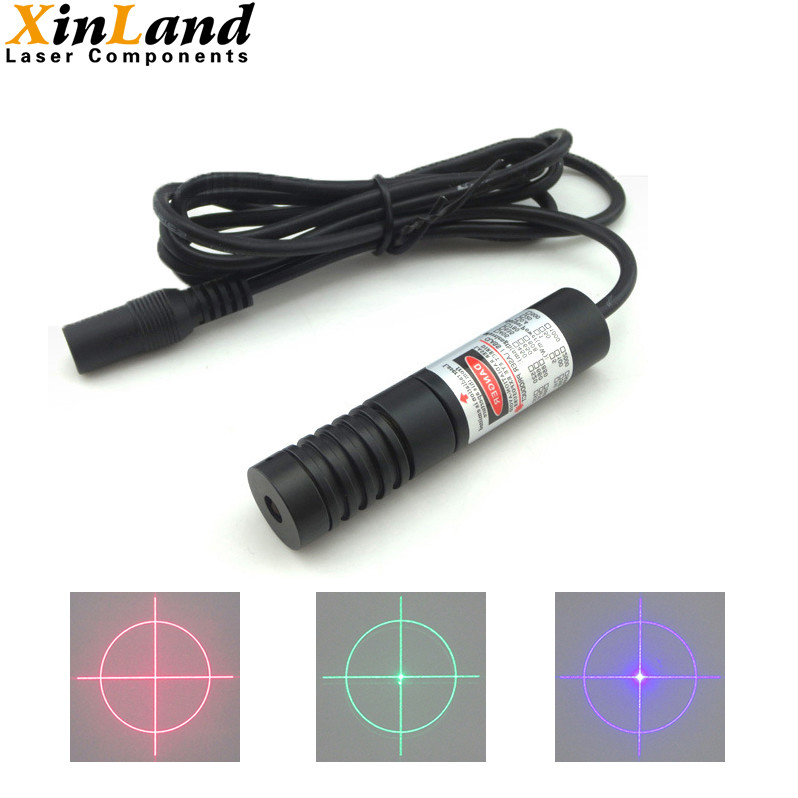

Laser Positioning Light with Crosshair Circle Pattern Laser module for Bullseye Positioning

Product Details:

Wavelength	Output Power	Voltage(V)	Electric Current	Size
650nm	100mw	DC 2.8-5.2V	<500mA	Φ16x70mm
520nm	50mw	DC 2.8-5.2V	<500mA	Φ16x70mm
450nm	100mw	DC 2.8-5.2V	<500mA	Φ16x70mm

Light Spot Details:

Circle angle: 10.5° Crosshair angle: 21°:

At 50 cm: Crosshair length: 18.5cm, Circle diameter: 9.15cm;

At 100 cm: Crosshair length: 37cm, Circle diameter: 18.3cm;

At 150 cm: Crosshair length: 55.5cm, Circle diameter: 27.45cm.

Circle angle: 14.2° Cross angle: 19.83°:

At 50cm: Crosshair length: 175mm, Circle diameter: 125mm

Installation height 0m - 5m can be used

Special specification:

At 25cm: Crosshair Length: 9cm, Circle Diameter: 6.2cm

At 50cm: Crosshair Length: 18cm, Circle Diameter: 12.4cm

At 100cm: Crosshair Length: 36cm, Circle Diameter: 24.8cm

Installation height 0m - 10m can be used

Other parameters:

Light spot mode: Crosshair Ring (Bullseye) (other effects can be customized)

Output wavelength: Customizable

Die power: 100mw (optional)

Working voltage: DC 2.8V to 5.2V (customizable)

Dimensions: 16*70mm (customizable)

Ultra-high brightness for indoor and outdoor use

The light is clear and bright, soft and not dazzling

Warranty:

we offer one year limited warranty for our products. Damage due to misuse, Ill treatment and unauthorized modifications will beyond our warranty.

Payment Method:

PayPal ( PayPal fee should be afforded at buyer's side), Bank Transfer, Western Union, and Money Gram.

Shipping Method:

DHL/FEDEX/UPS/EMS/TNT Express service; Post Service
