Five Concentric Circles DOE Laser Module With Round Spot

Name: Five Concentric Circles DOE Laser Module With Round Spot
Brand: XINLAND LASER CO.,LTD
SKU: DOE Laser Module
Availability: InStock

Product Details:

Place of Origin:	China
Brand Name:	xinland
Certification:	CE
Model Number:	DOE Laser Module

Detail Information

Place of Origin:

China

Brand Name:

xinland

Certification:

Model Number:

DOE Laser Module

Type:

Five Concentric Circles Laser

Lens Angle:

Lens Angles Optional

Light Source:

Red 100mW/Green 50mW/Blue 100mW

Wavelength:

650nm/520nm/450nm

Line Width:

Adjustable (mm)

Working Type:

Continuous Type

Highlight:

High Light

Highlight:

Five Concentric Circles DOE Laser Module

Round Spot DOE Laser Module

DOE Laser Module 100mW

Trading Information

Minimum Order Quantity:

10pcs

Price:

Negotiated

Packaging Details:

1pc carton

Delivery Time:

5-8 work days

Payment Terms:

T/T, L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability:

50000pcs per months

Product Description

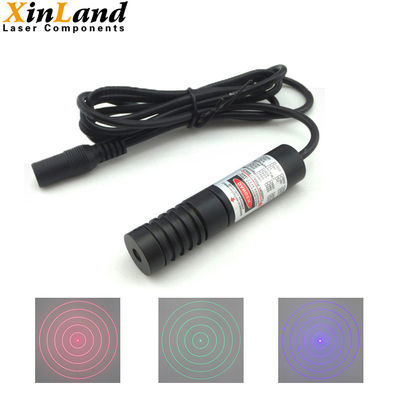

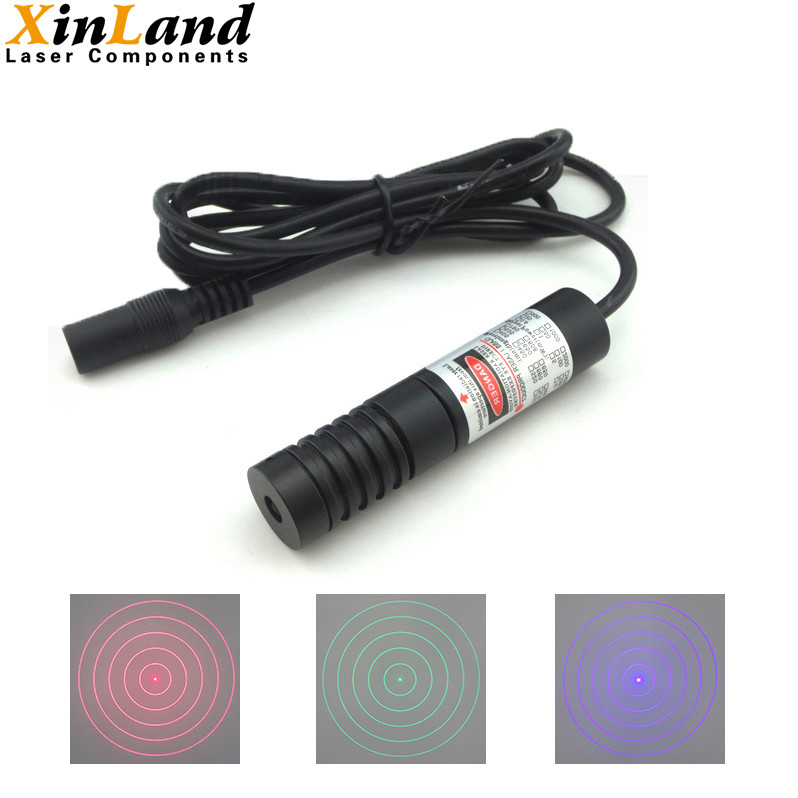

5 Concentric Circles Laser Module with Round Spot Laser Probe RGB Three Color Optional

Product Details:

Wavelength	Output Power	Voltage(V)	Electric Current	Size
650nm	100mw	DC 2.8-5.2V	<500mA	Φ16x70mm
520nm	50mw	DC 2.8-5.2V	<500mA	Φ16x70mm
450nm	100mw	DC 2.8-5.2V	<500mA	Φ16x70mm

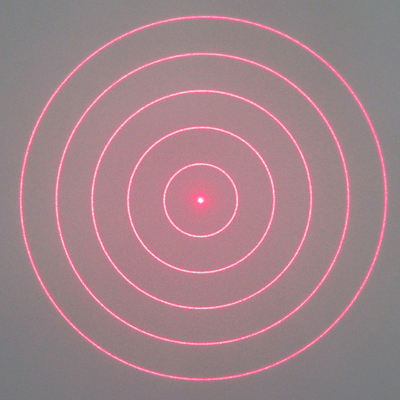

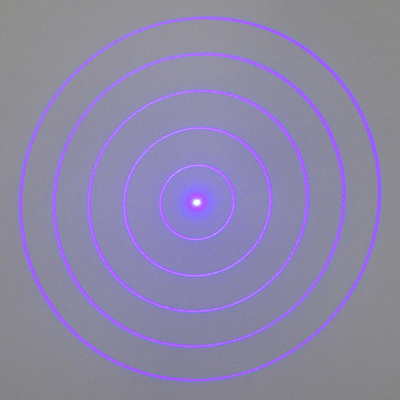

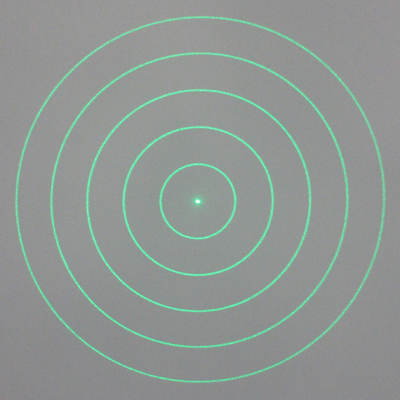

Light Spot Details:

Special specification:

At 25cm: The diameter of the circle from inside to outside is: 3cm/6cm/9cm/12cm/15cm

At 50cm: The diameter of the circle from inside to outside is: 6cm/12cm/18cm/24cm/30cm

At 100cm: The diameter of the circle from inside to outside is: 12cm/24cm/36cm/48cm/60cm

Lens angle: 33.18 °

Outer angle: 33.18° Inner angle: 6.6°

The diameter of the outer circle at 0.5 meters is 298 mm

The diameter of the inner circle at 0.5 meters is 58 mm

The spacing between the rings at 0.5m is 30mm

Installation height: 0m - 5m

Other parameters:

Light spot mode: Five Concentric Circles(other effects can be customized)

Output wavelength: Customizable

Die power: 100mw (optional)

Working voltage: DC 2.8V to 5.2V (customizable)

Dimensions: 16*70mm (customizable)

Warranty:

we offer one year limited warranty for our products. Damage due to misuse, Ill treatment and unauthorized modifications will beyond our warranty.

Payment Method:

PayPal ( PayPal fee should be afforded at buyer's side), Bank Transfer, Western Union, and Money Gram.

Shipping Method:

DHL/FEDEX/UPS/EMS/TNT Express service; Post Service
