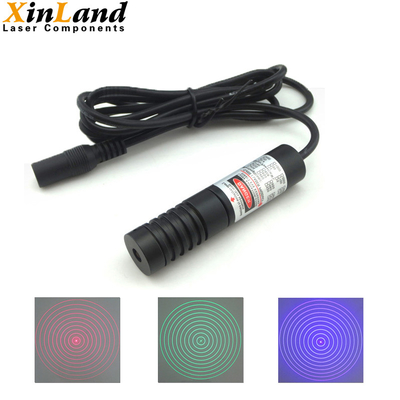

Ten Concentric Circles DOE Laser Module RGB Locating Continuous Type

Ten Concentric Circles DOE Laser Module RGB Locating Continuous Type

Product Details:
Place of Origin: China
Brand Name: xinland
Certification: CE
Model Number: DOE Laser Module
Detail Information
Place of Origin:
China
Brand Name:
xinland
Certification:
CE
Model Number:
DOE Laser Module
Type:
Ten Concentric Circles Laser
Lens Angle:
Various Lens Angles Optional
Light Source:
Red 100mW/Green 50mW/Blue 100mW
Wavelength:
650nm/520nm/450nm
Line Width:
Adjustable (mm)
Working Type:
Continuous Type
Highlight:

High Light

Highlight:

Ten Concentric Circles DOE Laser Module

,

RGB Locating DOE Laser Module

,

DOE Laser Module 450nm

Trading Information
Minimum Order Quantity:
10pcs
Price:
Negotiated
Packaging Details:
1pc carton
Delivery Time:
5-8 work days
Payment Terms:
T/T, L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:
50000pcs per months
Product Description

Ten Concentric Circles Laser Module Big Circle Laser Light RGB Locating Light

Product Details:
Wavelength Output Power Voltage(V) Electric Current Size
650nm 100mw DC 2.8-5.2V <500mA Φ16x70mm
520nm 50mw DC 2.8-5.2V <500mA Φ16x70mm
450nm 100mw DC 2.8-5.2V <500mA Φ16x70mm

Light Spot Details:

Light Spot Description:
At 50cm: Diameter of outer ring - 63cm Diameter of inner ring - 6.3cm Distance between rings 3.15cm
At 100cm: Diameter of outer ring - 126cm Diameter of inner ring - 12.6cm Space between rings 6.3cm
At 150 cm: Diameter of outer ring - 189 cm Diameter of inner ring - 18.9 cm Space between rings 9.45 cm
Installation height 0 meters - 5 meters can be used
Wavelength, Output Power, Voltage and Size Customizable
Other parameters:
Light spot mode: Crosshair Ring (Bullseye) (other effects can be customized)
Output wavelength: Customizable
Die power: 100mw (optional)
Working voltage: DC 2.8V to 5.2V (customizable)
Dimensions: 16*70mm (customizable)
Ten Concentric Circles DOE Laser Module RGB Locating Continuous Type 0

Ten Concentric Circles DOE Laser Module RGB Locating Continuous Type 1
Ten Concentric Circles DOE Laser Module RGB Locating Continuous Type 2
Ten Concentric Circles DOE Laser Module RGB Locating Continuous Type 3

Warranty:

we offer one year limited warranty for our products. Damage due to misuse, Ill treatment and unauthorized modifications will beyond our warranty.

Payment Method:

PayPal ( PayPal fee should be afforded at buyer's side), Bank Transfer, Western Union, and Money Gram.

Shipping Method:

DHL/FEDEX/UPS/EMS/TNT Express service; Post Service
