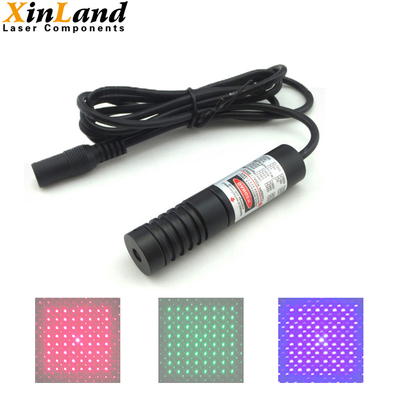

64 Point Fractional Gypsophila DOE Laser Module Spot Type

Name: 64 Point Fractional Gypsophila DOE Laser Module Spot Type
Brand: XINLAND LASER CO.,LTD
SKU: DOE Laser Module
Availability: InStock

Product Details:

Place of Origin:	China
Brand Name:	xinland
Certification:	CE
Model Number:	DOE Laser Module

Detail Information

Place of Origin:

China

Brand Name:

xinland

Certification:

Model Number:

DOE Laser Module

Type:

64 Point Gypsophila Square Laser

Light Source:

Red/Green/Blue

Output Power:

50mw/100mw Customizable

Wavelength:

650nm/520nm/450nm

Line Width:

Adjustable (mm)

Installation Height:

0-10 Meters

Highlight:

High Light

Highlight:

Fractional Gypsophila DOE Laser Module

64 Point DOE Laser Module

Spot Type DOE Laser Module

Trading Information

Minimum Order Quantity:

10pcs

Price:

Negotiated

Packaging Details:

1pc carton

Delivery Time:

5-8 work days

Payment Terms:

T/T, L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability:

50000pcs per months

Product Description

64 Point Laser Gypsophila Square Fractional Laser Module Spot Type Customizable

Product Details:

Wavelength	Output Power	Voltage(V)	Electric Current	Size
650nm	100mw	DC 2.8-5.2V	<500mA	Φ16x70mm
520nm	50mw	DC 2.8-5.2V	<500mA	Φ16x70mm
450nm	100mw	DC 2.8-5.2V	<500mA	Φ16x70mm

Light Spot Details:

At 50 cm: side length 4.6 cm, point distance 0.657 cm, point diagonal length: 6.5 cm

At 100 cm: side length 9.2 cm, point distance 1.314 cm, point diagonal length: 13 cm

At 150 cm: side length 13.8 cm, point distance 1.971 cm, point diagonal length: 19.5 cm

Installation height 0-10 meters

Wavelength, Output Power, Voltage and Size Customizable

Other parameters:

Light spot mode: 8*8=64 Point Fractional Laser(other effects can be customized)

Output wavelength: Customizable

Die power: 100mw (optional)

Working voltage: DC 2.8V to 5.2V (customizable)

Dimensions: 16*70mm (customizable)

Warranty:

we offer one year limited warranty for our products. Damage due to misuse, Ill treatment and unauthorized modifications will beyond our warranty.

Payment Method:

PayPal ( PayPal fee should be afforded at buyer's side), Bank Transfer, Western Union, and Money Gram.

Shipping Method:

DHL/FEDEX/UPS/EMS/TNT Express service; Post Service
