77 Point Fractional Dot Laser Module 50mw 100mw 500mA

Large Image : 77 Point Fractional Dot Laser Module 50mw 100mw 500mA

Product Details:

Place of Origin:	China
Brand Name:	xinland
Certification:	CE
Model Number:	DOE Laser Module

Payment & Shipping Terms:

Minimum Order Quantity:	10pcs
Price:	Negotiated
Packaging Details:	1pc carton
Delivery Time:	5-8 work days
Payment Terms:	T/T, L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	50000pcs per months

Contact Now

77 Point Fractional Dot Laser Module 50mw 100mw 500mA

Description

Type:	77 Point Gypsophila Rectangle Laser	Light Source:	Red/Green/Blue
Output Power:	50mw/100mw Customizable	Wavelength:	650nm/520nm/450nm
Line Width:	Adjustable (mm)	Installation Height:	0-10 Meters
High Light:	77 Point Fractional Dot Laser Module , Dot Laser Module 50mw , Dot Laser Module 500mA

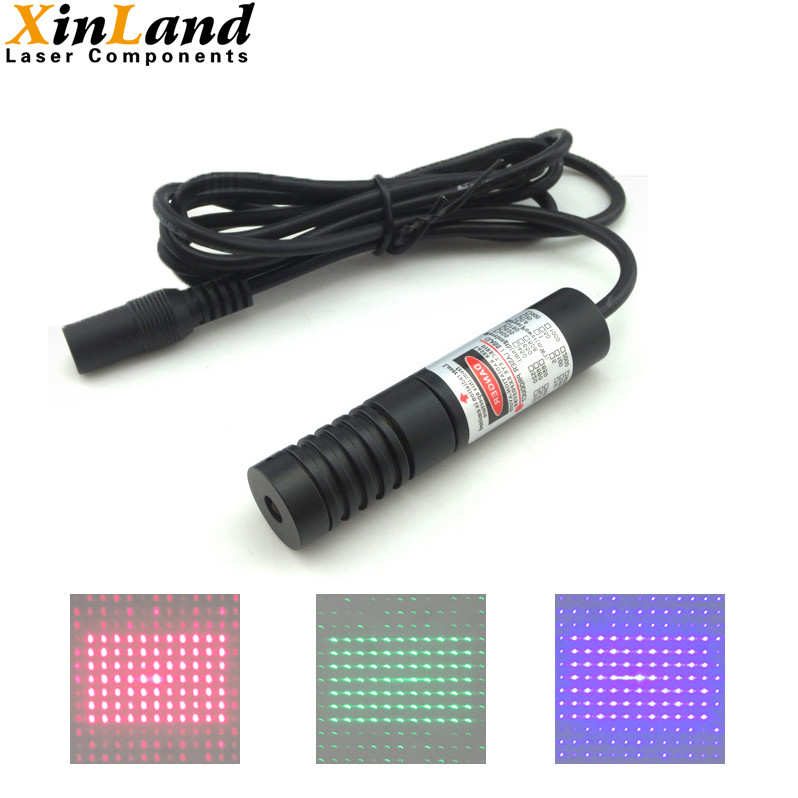

77 Point Fractional Laser Rectangle Gypsophila Laser Module External Manual Adjustment Design

Product Details:

Wavelength	Output Power	Voltage(V)	Electric Current	Size
650nm	100mw	DC 2.8-5.2V	<500mA	Φ16x70mm
520nm	50mw	DC 2.8-5.2V	<500mA	Φ16x70mm
450nm	100mw	DC 2.8-5.2V	<500mA	Φ16x70mm

Light Spot Details:

At 50cm: side length 6.5cm, side width 3.9cm, point distance 0.65cm, point diagonal length: 7.6cm

At 100cm: side length 13cm, side width 7.8cm, point distance 1.3cm, point diagonal length: 15.2cm

At 150cm: side length 19.5cm, side width 11.7cm, point spacing 1.95cm, point diagonal length: 22.8cm

Installation height 0-10 meters

Wavelength, Output Power, Voltage and Size Customizable

Other parameters:

Light spot mode: 8*8=64 Point Fractional Laser(other effects can be customized)

Output wavelength: Customizable

Die power: 100mw (optional)

Working voltage: DC 2.8V to 5.2V (customizable)

Dimensions: 16*70mm (customizable)

Warranty:

we offer one year limited warranty for our products. Damage due to misuse, Ill treatment and unauthorized modifications will beyond our warranty.

Payment Method:

PayPal ( PayPal fee should be afforded at buyer's side), Bank Transfer, Western Union, and Money Gram.

Shipping Method:

DHL/FEDEX/UPS/EMS/TNT Express service; Post Service
