Circular Plane DOE Laser Module 520nm 100mw

Name: Circular Plane DOE Laser Module 520nm 100mw
Brand: XINLAND LASER CO.,LTD
SKU: DOE Laser Module
Availability: InStock

Product Details:

Place of Origin:	China
Brand Name:	xinland
Certification:	CE
Model Number:	DOE Laser Module

Detail Information

Place of Origin:

China

Brand Name:

xinland

Certification:

Model Number:

DOE Laser Module

Laser Type:

9.45° Plane Circular Laser

Lens Angle:

9.45°

Output Power:

50mw/100mw Customizable

Light Source:

Red/Green/Blue

Wavelength:

650nm/520nm/450nm

Optical Lens:

Grating Sheet

Highlight:

High Light

Highlight:

Circular Plane DOE Laser Module

DOE Laser Module 520nm

Circular DOE Laser Module 100mw

Trading Information

Minimum Order Quantity:

10pcs

Price:

Negotiated

Packaging Details:

1pc carton

Delivery Time:

5-8 work days

Payment Terms:

T/T, L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability:

50000pcs per months

Product Description

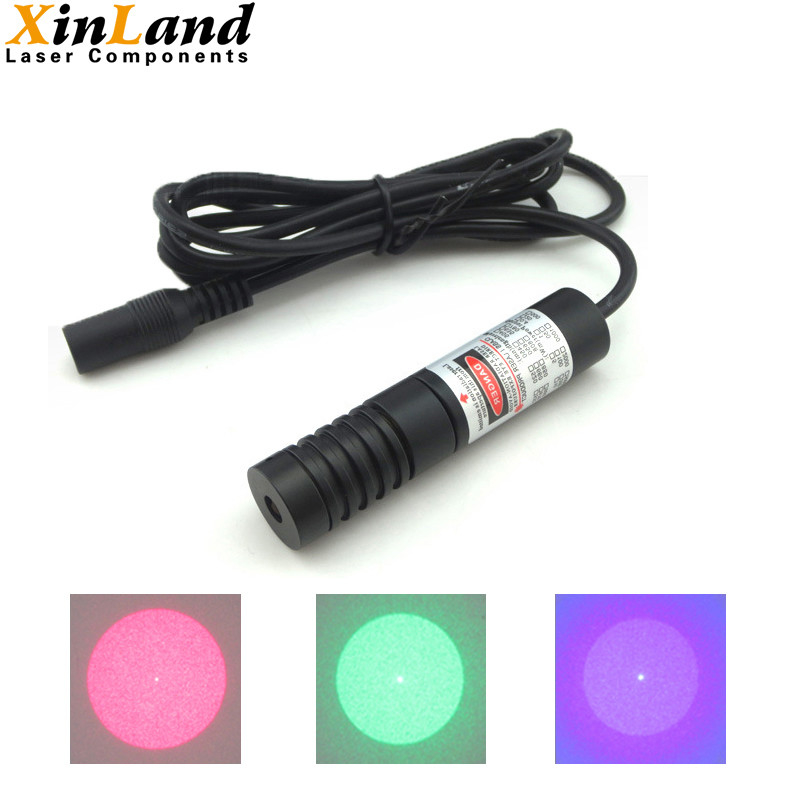

9.45° Lens Circular Plane with Center Point Red Laser Circular Spot Laser Module

Product Details:

Wavelength	Output Power	Voltage(V)	Electric Current	Size
650nm	100mw	DC 2.8-5.2V	<500mA	Φ16x70mm
520nm	50mw	DC 2.8-5.2V	<500mA	Φ16x70mm
450nm	100mw	DC 2.8-5.2V	<500mA	Φ16x70mm

Light Spot Details:

Lens Degree 9.45°

At 0.25 meters, the diameter of the solid circle is 41.5 mm

At 0.5 meters, the diameter of the solid circle is 83 mm

At 1 meter, the diameter of the solid circle is 166 mm

Installation height 0 meters - 5 meters

Wavelength, Output Power, Voltage and Size Customizable

Other parameters:

Working voltage: DC 2.8V to 5.2V (customizable)

Dimensions: 16*70mm (customizable)

Externally adjustable design, the thickness of the light can be adjusted at will, and the set contains an adjustable power supply, which can control the brightness of the laser at will.

We provide a variety of effect laser modules---can be used for special red light spot positioning lights for marking machines, special positioning lights for shoe machines, special positioning lights for medical equipment, laser positioning lights for engraving machines, laser positioning lights for sawmills, Laser positioning lights for clothing machinery, infrared marking instruments for bridge cutting machines, laser positioning lights for cutting machines, etc.

Warranty:

we offer one year limited warranty for our products. Damage due to misuse, Ill treatment and unauthorized modifications will beyond our warranty.

Payment Method:

PayPal ( PayPal fee should be afforded at buyer's side), Bank Transfer, Western Union, and Money Gram.

Shipping Method:

DHL/FEDEX/UPS/EMS/TNT Express service; Post Service
