DOE Laser Module
>
Solid Circle Plane Homogenization DOE Laser Module 450nm

Solid Circle Plane Homogenization DOE Laser Module 450nm

Product Details:
Place of Origin: China
Brand Name: xinland
Certification: CE
Model Number: DOE Laser Module
Detail Information
Place of Origin:
China
Brand Name:
xinland
Certification:
CE
Model Number:
DOE Laser Module
Laser Type:
53.1° 54.02° Solid Circle Laser
Lens Angle:
53.1° 54.02° Customizable
Output Power:
50mw/100mw Customizable
Light Source:
Red/Green/Blue
Wavelength:
650nm/520nm/450nm
Optical Lens:
Grating Sheet
Highlight:

High Light

Highlight:

Homogenization DOE Laser Module

,

Solid Circle Plane DOE Laser Module

,

DOE Laser Module 450nm DOE Laser Module

Trading Information
Minimum Order Quantity:
10pcs
Price:
Negotiated
Packaging Details:
1pc carton
Delivery Time:
5-8 work days
Payment Terms:
T/T, L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:
50000pcs per months
Product Description

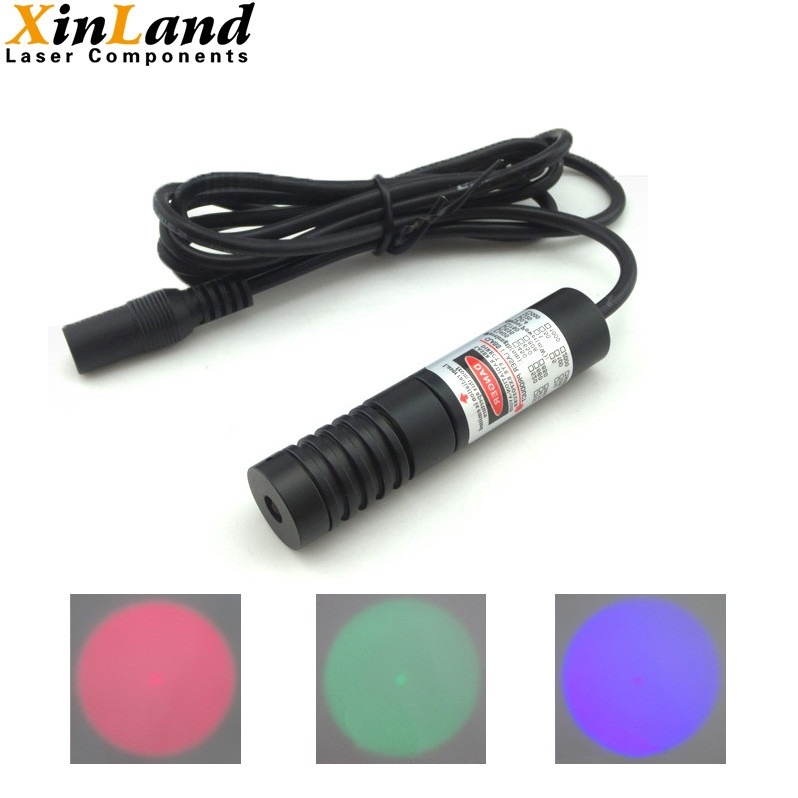

53.1° 54.02° Lens Solid Circle Plane Homogenization Effect Red Green Blue Laser Module

Product Details:
Wavelength Output Power Voltage(V) Electric Current Size
650nm 100mw DC 2.8-5.2V <500mA Φ16x70mm
520nm 50mw DC 2.8-5.2V <500mA Φ16x70mm
450nm 100mw DC 2.8-5.2V <500mA Φ16x70mm

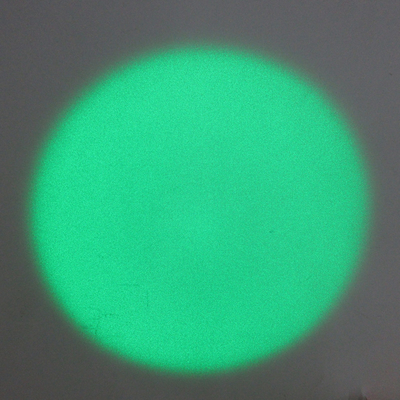

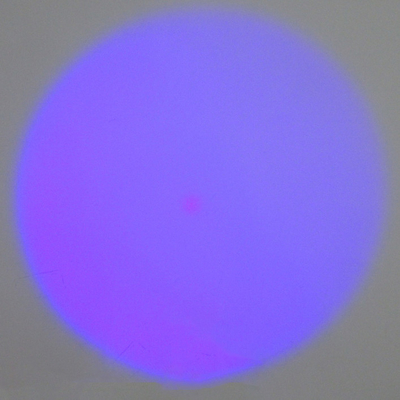

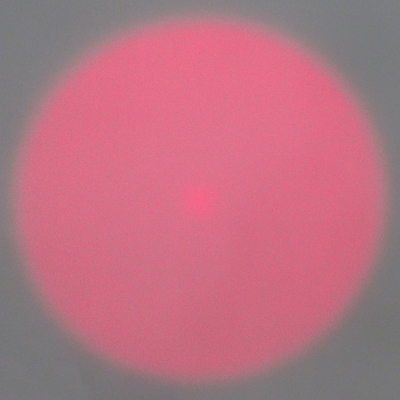

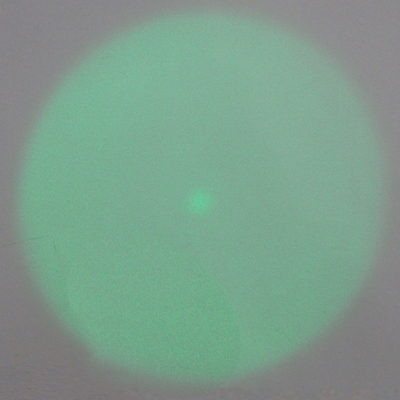

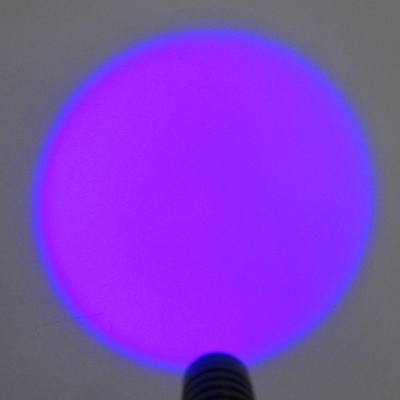

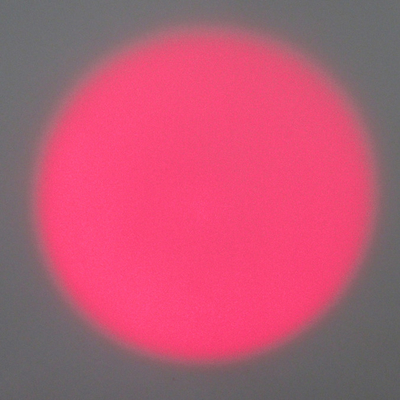

Light Spot Details:

Lens angle: 53.1°
At 25 cm: 250mm in diameter
At 50 cm: 500mm in diameter
At 100 cm: 1000mm in diameter
Lens angle: 54.02°
At 25 cm: 255mm in diameter
At 50 cm: 510mm in diameter
At 100 cm: 1020mm in diameter
Installation height: 0-2meters
Wavelength, Output Power, Voltage and Size Customizable
Other parameters:
Working voltage: DC 2.8V to 5.2V (customizable)
Dimensions: 16*70mm (customizable)
Solid Circle Plane Homogenization DOE Laser Module 450nm 0
Lens angle: 53.1°
At 25 cm: 250mm in diameter
At 50 cm: 500mm in diameter
At 100 cm: 1000mm in diameter
Solid Circle Plane Homogenization DOE Laser Module 450nm 1Solid Circle Plane Homogenization DOE Laser Module 450nm 2Solid Circle Plane Homogenization DOE Laser Module 450nm 3
Lens angle: 54.02°
At 25 cm: 255mm in diameter
At 50 cm: 510mm in diameter
At 100 cm: 1020mm in diameter
Solid Circle Plane Homogenization DOE Laser Module 450nm 4
Solid Circle Plane Homogenization DOE Laser Module 450nm 5
Solid Circle Plane Homogenization DOE Laser Module 450nm 6
